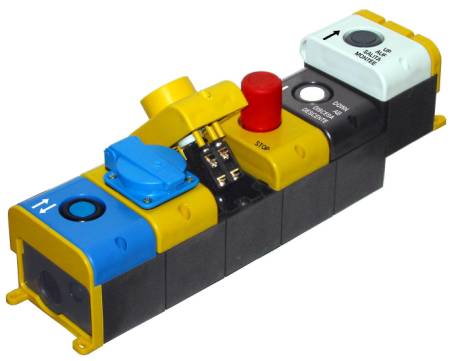

COMPOSITE CAR-TOP INSPECTION STATION

This modular pendant station has been designed as a car-top inspection station, but thanks to its versatility it can also be used as a pendant station or as a control station suitable to be fixed to wall.

To see technical specifications click here:

TECHNICAL DETAILS, CHARACTERISTICS AND DIMENSIONS

AVAILABLE COMPOSITE SECTIONS

Picture	Description	Colour	Code
	Empty Section (suitable to fit standard 22mm diameter push buttons).	White	L0000W
		Blue	L0000B
		Yellow	L0000G
		Black	L0000N

Picture		Description	Contacts	Code
		Section with neuter button. # = W (white), B (blue), Y (yellow), N (Black).	1NO+1NC	L0101#*
			2NO+2NC	L0102#*
			3NO+3NC	L0103#*
		Section with “UP” button.	1NO+1NC	L0201*
			2NO+2NC	L0202*
			3NO+3NC	L0203*
		Section with “DOWN” button.	1NO+1NC	L0301*
			2NO+2NC	L0302*
			3NO+3NC	L0303*
	Section with “COMMON” button.		1NO	L0401*
			2NO	L0402*
			3NO	L0403*
	Section with selector switch with three stable positions: 1 - 0 - 2		-	-
			2NO+2NC	L0502*
			-	-
	Section with “INSPECTION” selector switch. Two stable positions.		1NO+1NC	L0601*
			2NO+2NC	L0602*
			3NO+3NC	L0603*
	Section with mushroom shaped holding button, turn to release. EN418		1NC	L0701*
			2NC	L0702*
			3NC	L0703*
	Section with “ALARM” mushroom shaped button (40mm diameter).		1NO+1NC	L0801*
			2NO+2NC	L0802*
			3NO+3NC	L0803*
	Section with plug. (not waterproof).		SHUKO	L0910*
			BIVALENTE (ITALIAN)	L0911*
			FRENCH	L0912*
	Section with emergency light: it switches on in case of blackout.			L1001*
	Section with emergency light: it switches on in case of blackout or pushing the “light” button.			L1002*

*:	M	Section complete with lateral walls and knock able out holes M25, M20
	P	Section complete with lateral walls and knock able out holes PG16, PG 13,5
	S	Section without lateral walls
